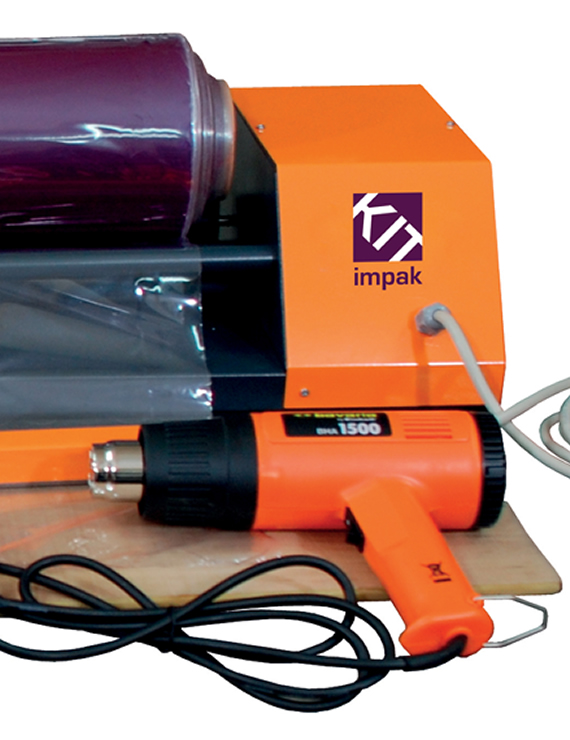

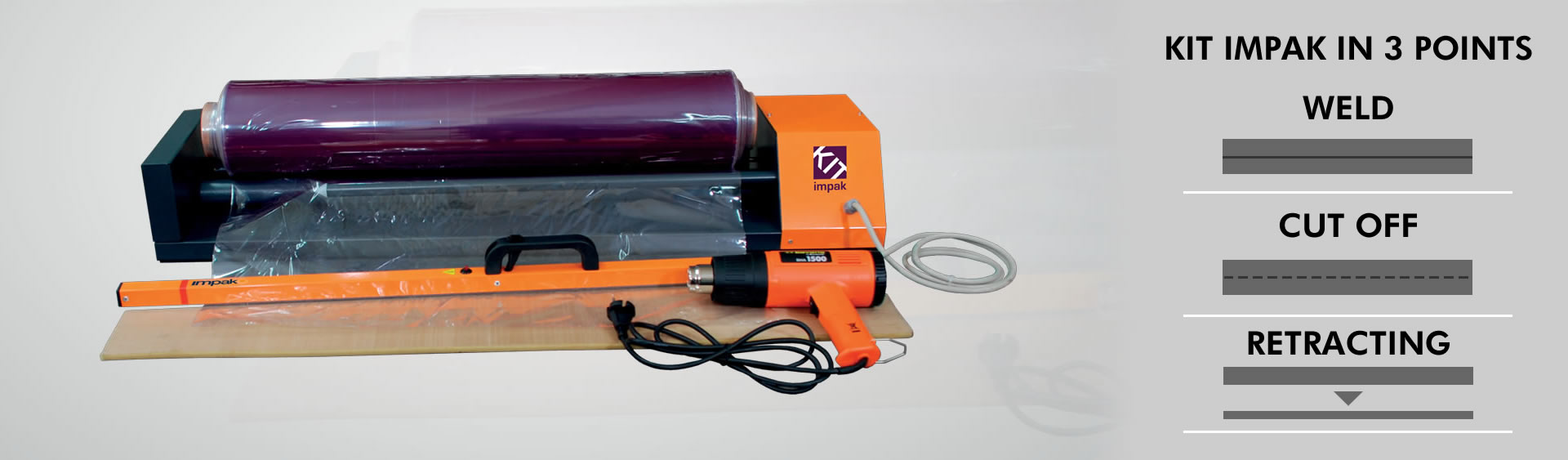

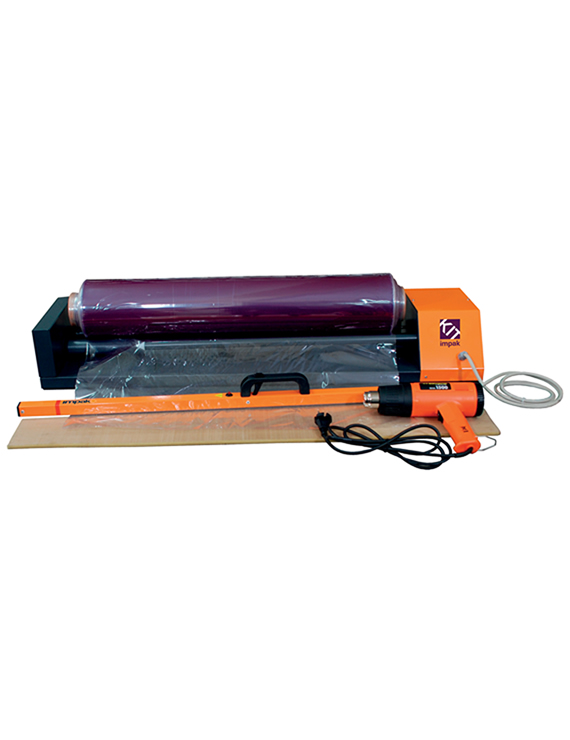

It’s a manual packaging system that allows the user to get a shrink wrapped package in a very simple way. It’s equipped with an unrolling base coil, which guarantees the packaging of items of any shape and size. Thanks to the unique speed of the hot generator it’s possible to shrink the PVC film, achieving the same result of a more sophisticated and expensive machine.
USE |
HEAT SHRINKING
|
FUNZIONAMENTO |
ELECTRIC |
ELECTRIC SUPPLY
|
(220-240 V / 50-60 Hz)
|
POWER (WATT)
|
120
|
WEIGHT (KG)
|
15
|
SIZE (lxhxw) CM
|
100 x 15 x 26
|
SEALING BAR (CM)
|
85
|
HEAT INSULATING PAD
|
25x100
|
MEDIUM CYCLE TIME (SEC)
|
6
|
HOT AIR GENERATOR
|
2 VEL. - 1500 W
|
COIL TYPE
|
MONOFOLDING (NOT PROVIDED)
|
MAX COIL SIZE
|
80x25
|
UNROLLING BASE COIL (CAN HOLD COIL UP TO 80 cm WIDTH) |
CUTTING AND SEALING BAR |
TWO SPEED HOT AIR GENERATOR |
| SUPPORT INSULATING PAD |
| SUPPORT INSULATING PAD 95 X 95 CM |
| SUPPORTING TABLE |
Descriptions, Data, Dimensions and Colors are not binding and may change without notice. © All models of the design of the FB Italy equipments are deposited.
